PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high.
Noted:please use application: Mission Planner to connect and calibrate.
Pixhawk Flight Controller Kits: all pieces come with connectors installed which makes set up easy.

Description：

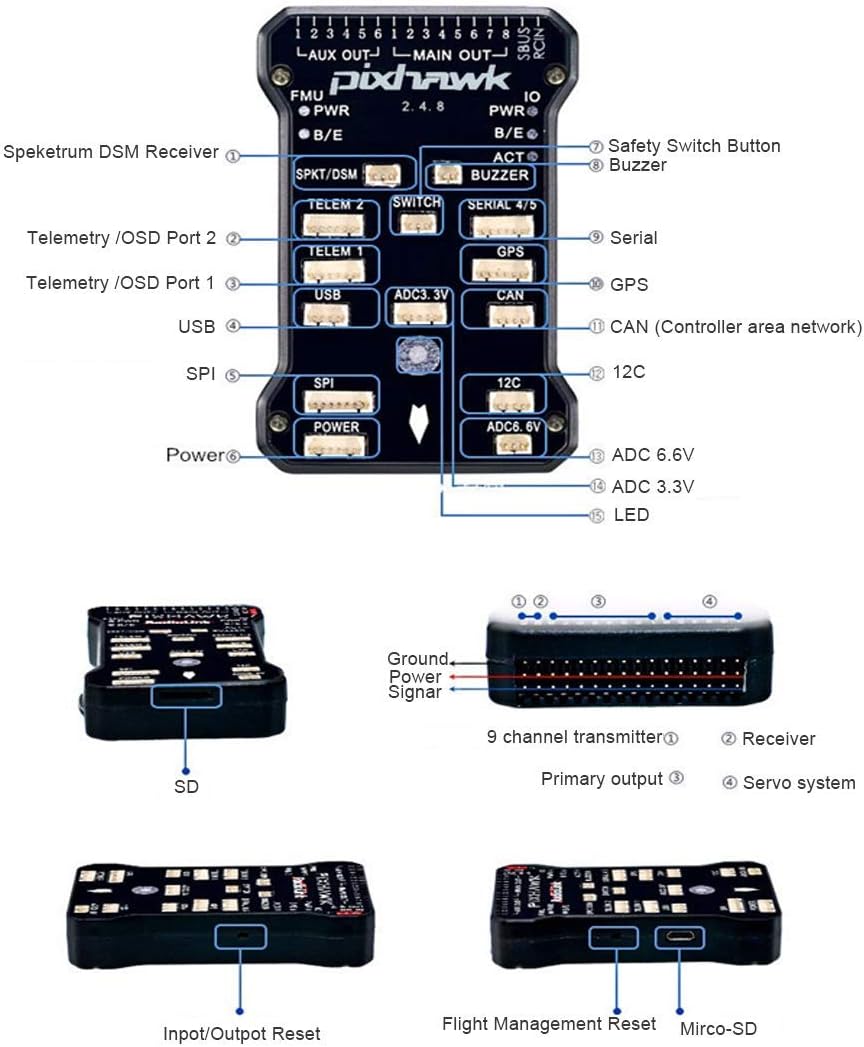

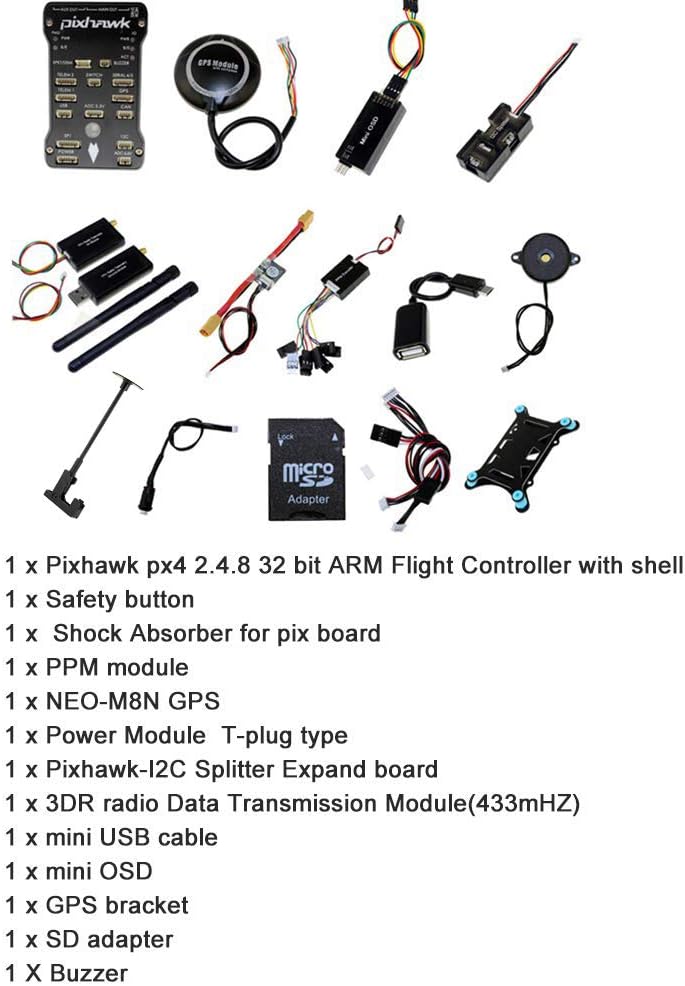

PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high. Real time operation system 14 PWM/ Servo Output Bus interface(UART,I2C,SPI,CAN) Intergrated back up power and lose efficacy controller, main controller lose Efficacy can safely alter to back up control Providing automatic and manual mode Providing redundant power supply input and failover Multicolor LED light Providing multi sound buzzer interface Micro SD records flying data Hardware parameters Processor: 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point Processing unit Main frequency: 168MHZ,256K RAM 32 bit STM32F103 back up processor Sensor: L3GD20 3 axis digital 16 bit gyroscope LSM303D 3 axis 14 acceleration/magnetometer MPU6000 6 axis acceleration/magnetometer Interface: 5 UART, one compatible high voltage, two have hardware flow control Two CAN Spektrum DSM/ DSM2/ DSM-X satellite receiver compatible input Futaba SBUS compatible input and output PPM signal input RSSI(PWM or voltage) output I2C SPI 3.3 and 6.6VADC input External MICRO USB interface Package Included:( as the main picture show) 1 x Pixhawk px4 2.4.8 32 bit ARM Flight Controller with shell 1 x Safety button 1 x Shock Absorber for pix board 1 x PPM module 1 x NEO-M8N GPS 1 x Power Module T-plug type 1 x Pixhawk-I2C Splitter Expand board 1 x 3DR radio Data Transmission Module(915mHZ) 1 x mini USB cable 1 x mini OSD 1 x GPS bracket 1 x SD adapter 1 X Buzzer Noted: if you can not connect and calibrate successly, please use application: Mission Planner to connect and calibrate.
