Description：
The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher
standard in our manufactory as well as better performance than ever before.

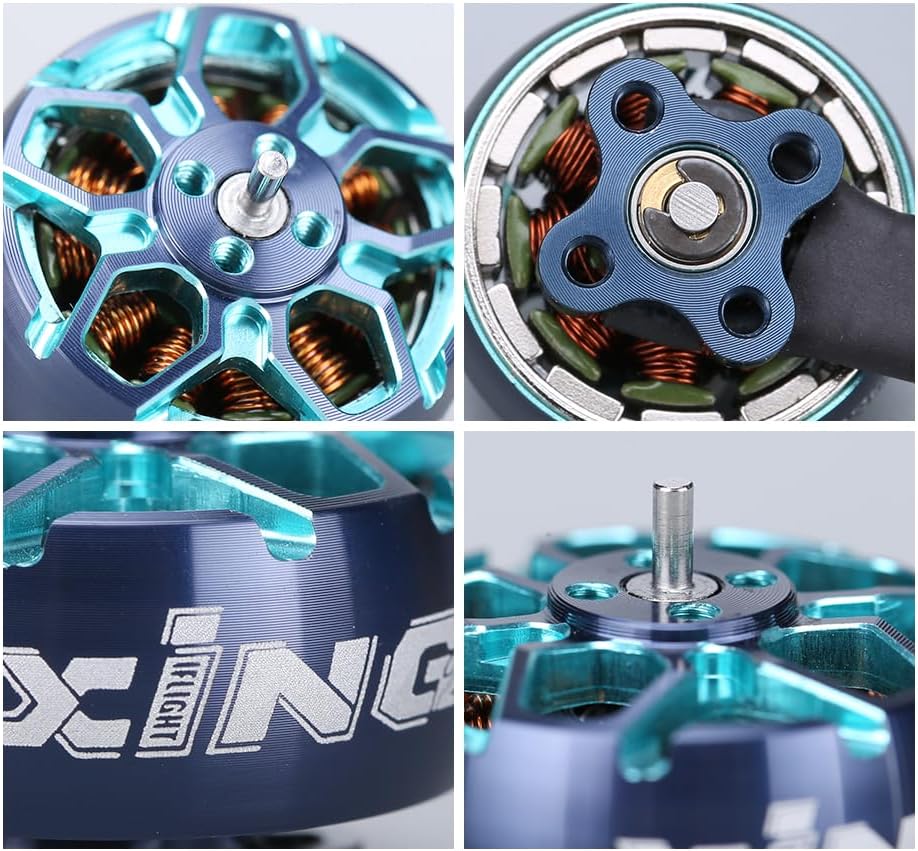

New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor!
Maybe the biggest bottleneck of our FPV flight controller is the motor due to it's translation delay of it braking and accelerating.
XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum.
The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!
The new MOTOR XIN2 X1404 designed for ultralight toothpick build, that micro drone change FPV in nowadays.
Super light 3" builds like these just got much nicer since we got SucceX whoop style all in in one (AIO) with iflight new toothpick style frame you can build the ultralight micro drone.

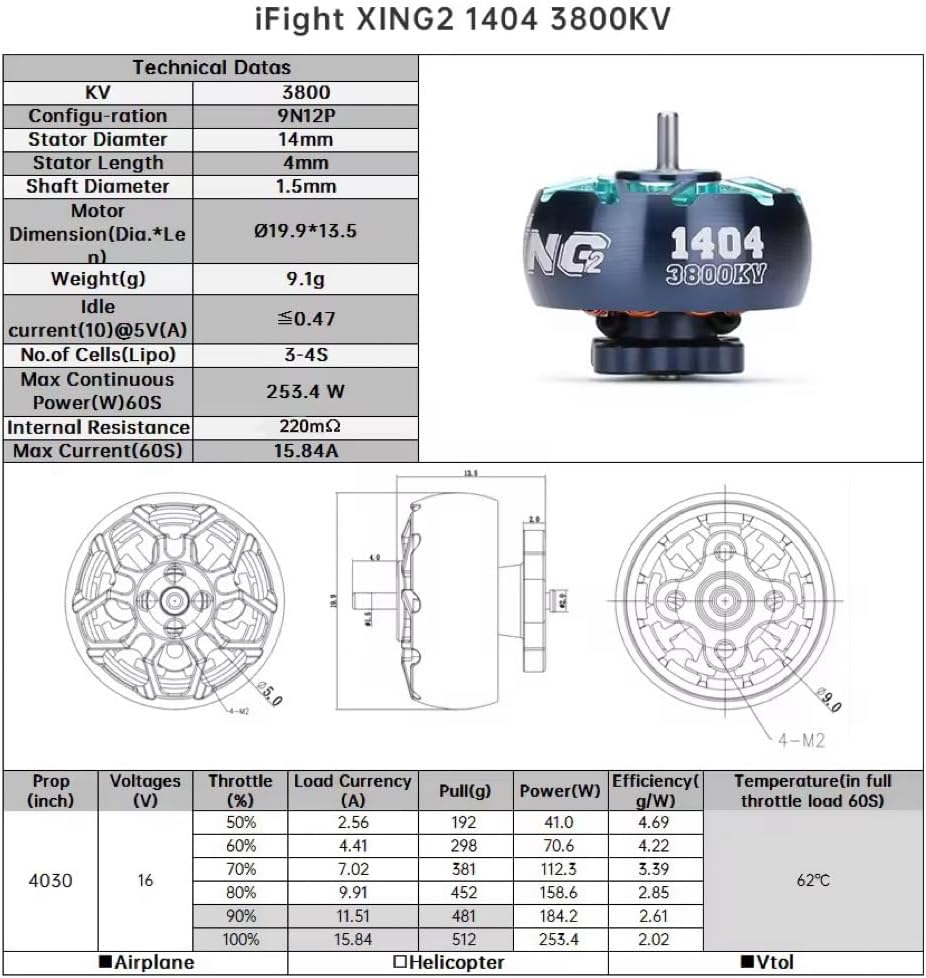

SPECIFICATIONS
- Voltage: 3-4S
- KV : 3800KV/4600KV
- Configuration: 9N12P
- Stator Diameter: 14mm
- Stator Length: 4mm
- Shaft Diameter: 1.5mm
- No. of Cells(Lipo): 2-4S
- Max Continuous current(A): 11.8A
- Max Continuous Power(W): 174.6W
- Internal resistance: 0.28Ω
- Weight: 8.5g(without cable)
- Mounting pattern: 9*9-φ2mm
- Bearing: 5*2*2.5mm
- Wire: 120mm/26AWG
Package included:
- 4 x XING2 1404 Motor Unibell
- 32 x M2x7 mounting screws
