Description:

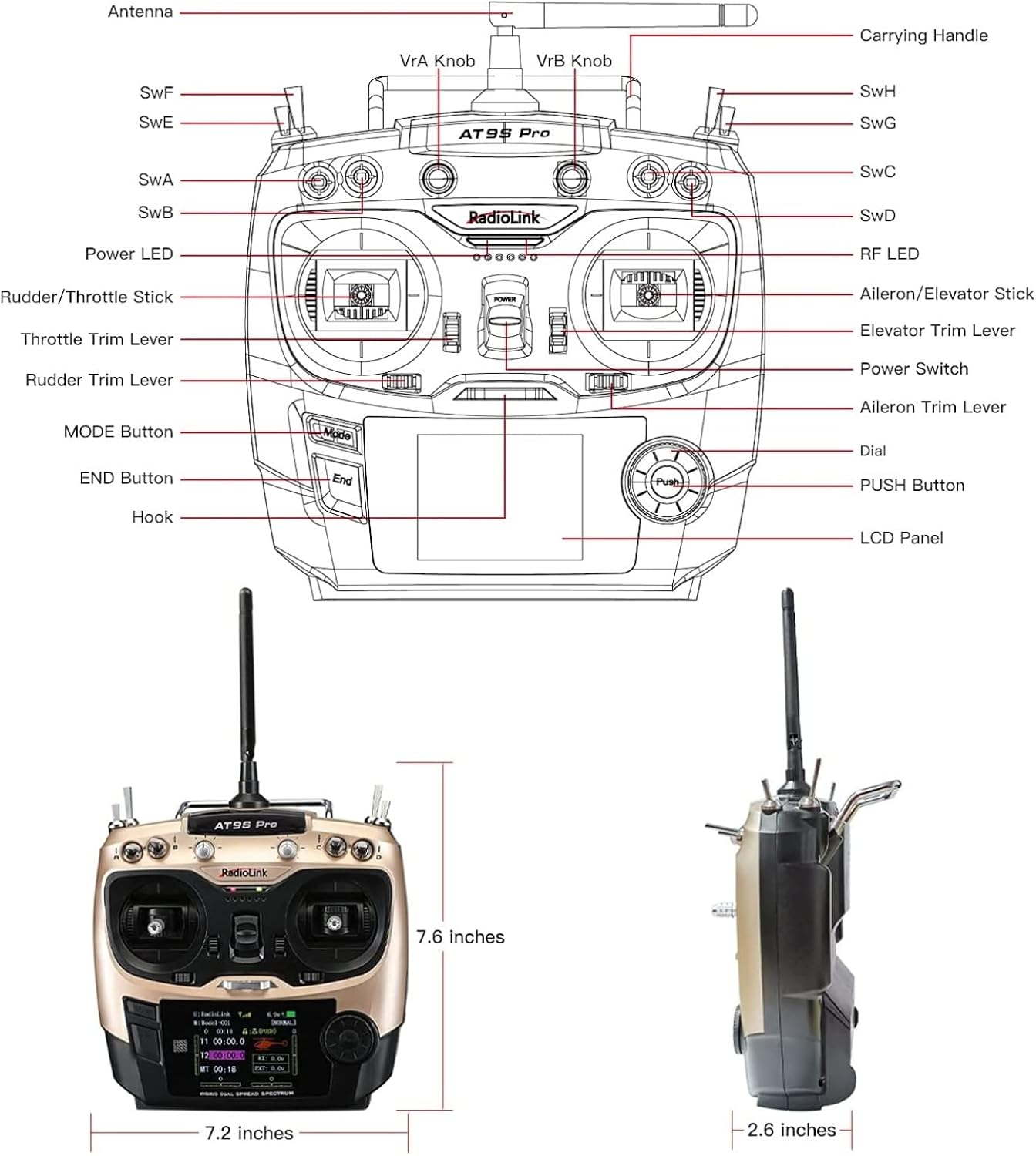

TransmissionPower: DSSS&FHSS<100mW(20dbm) CRSF:10mW/25mW/100mW/500mW/1W/2W(Optional) OperatingCurrent: DSSS&FHSS <90mA@12V CRSF Depends on the Transmission Power Selecte Operating Voltage: 7.4~18.0V 4096 Section Precision Screen: 2.8inches 16 Colorful Screen, 240*320 Pixels Channel:12 Channels , 5-12 Channels are Customized Size: AT9S Pro 183*100*193mm Weight: 0.88kg Control Range: 4 Kilometers in the Air (Maximum Range is Tested in an Unobstructed Area Free of Interference)
Compatible Receivers: 12CH - R12DSM, R12DS, 10CH-R9DS, R6DS,R6DSM CRSF Protocol: Receiver from BLACKSHEEP

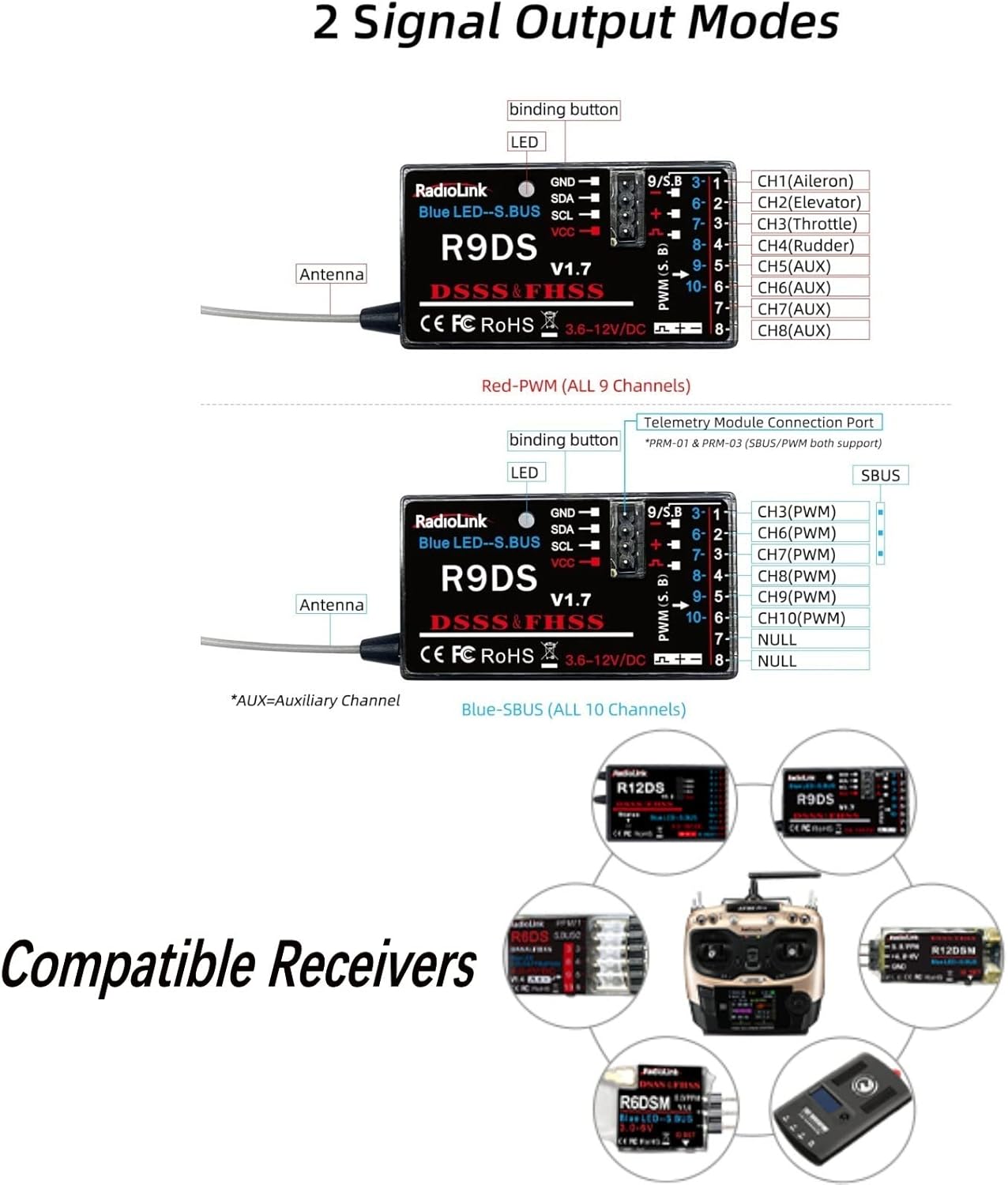

R9DS Receiver Specifications: Signal: SBUS,PWM Channel: PWM 9 Channels, SBUS 10 Channels Control Distance: 900m on Ground,1500m Air Working Voltage: 4.8-10V Working Current: 38-45mA(Input Voltage: 5V) Size:43*24*15mm Weight:11g
PackageInformation: PackageSize:18.5*10.5*19.5cm PackageWeight:880g GeneralBoxPackage

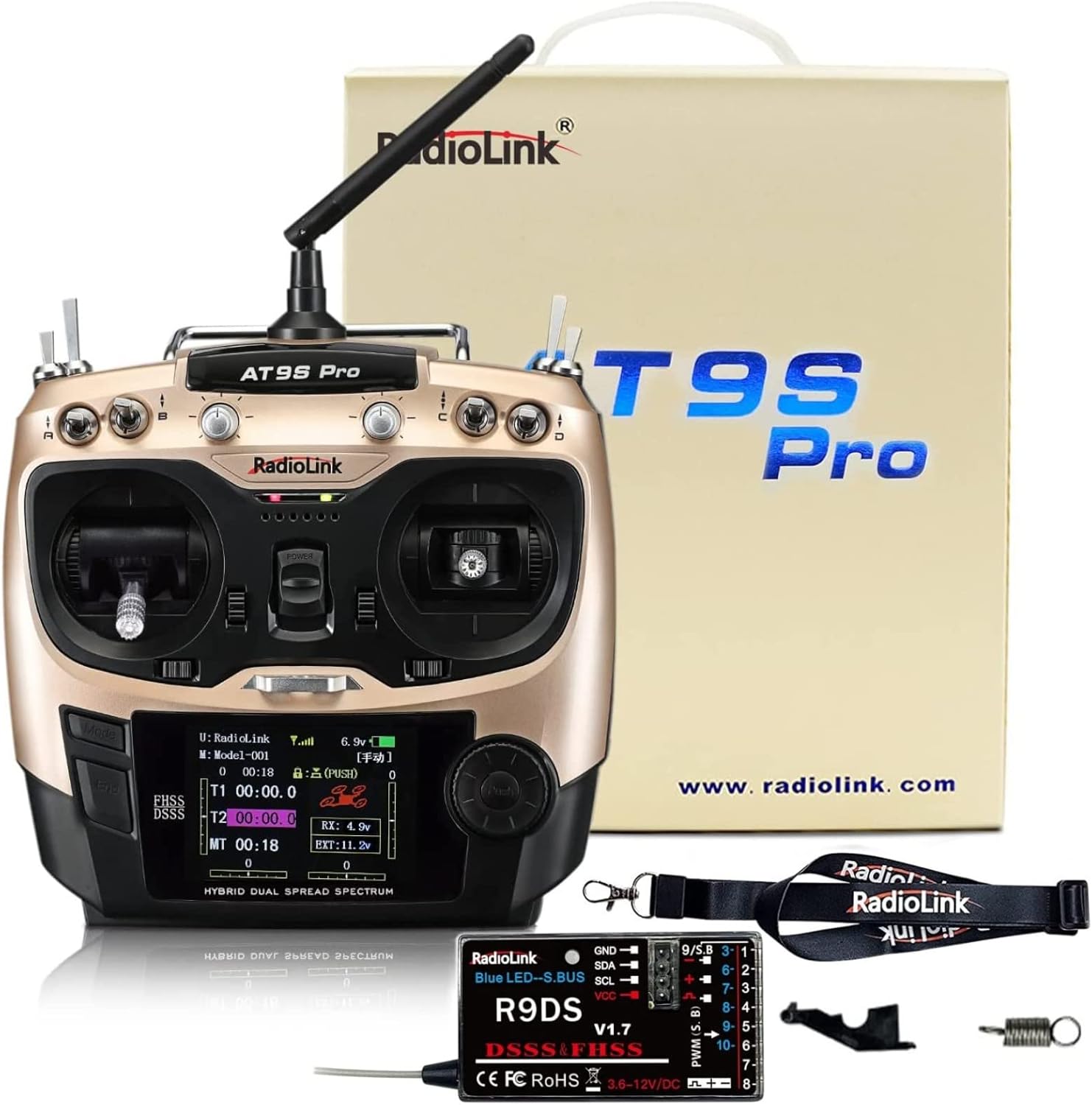

PackageIncluding: 1*AT9SProTransmitter(Mode2) 1*R9DSReceiver 1*Radiolink Lanyard
