AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)

AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)

$17.59
$17.59 $25.89
Skip to product information
AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)
  • AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)
  • AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)
  • AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)
  • AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)
  • AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)
  • AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)
  • AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)
AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)

AGFRC 20A ESC Brushless DSHOT600 BLHeli_S 2-4S Lipos Electronic Speed Controller for FPV QAV Drone Multirotor Quadcopter (XR-20A)

$17.59
$17.59 $25.89
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

1) Comes with BLHeli_S firmware, easy to upgrade or flash via the esc signal cable.
2) Hardware PWM drive motor, low voice, smooth throttle response. Damped light enabled to make it more sensitive and effective while reduce the motor speed.

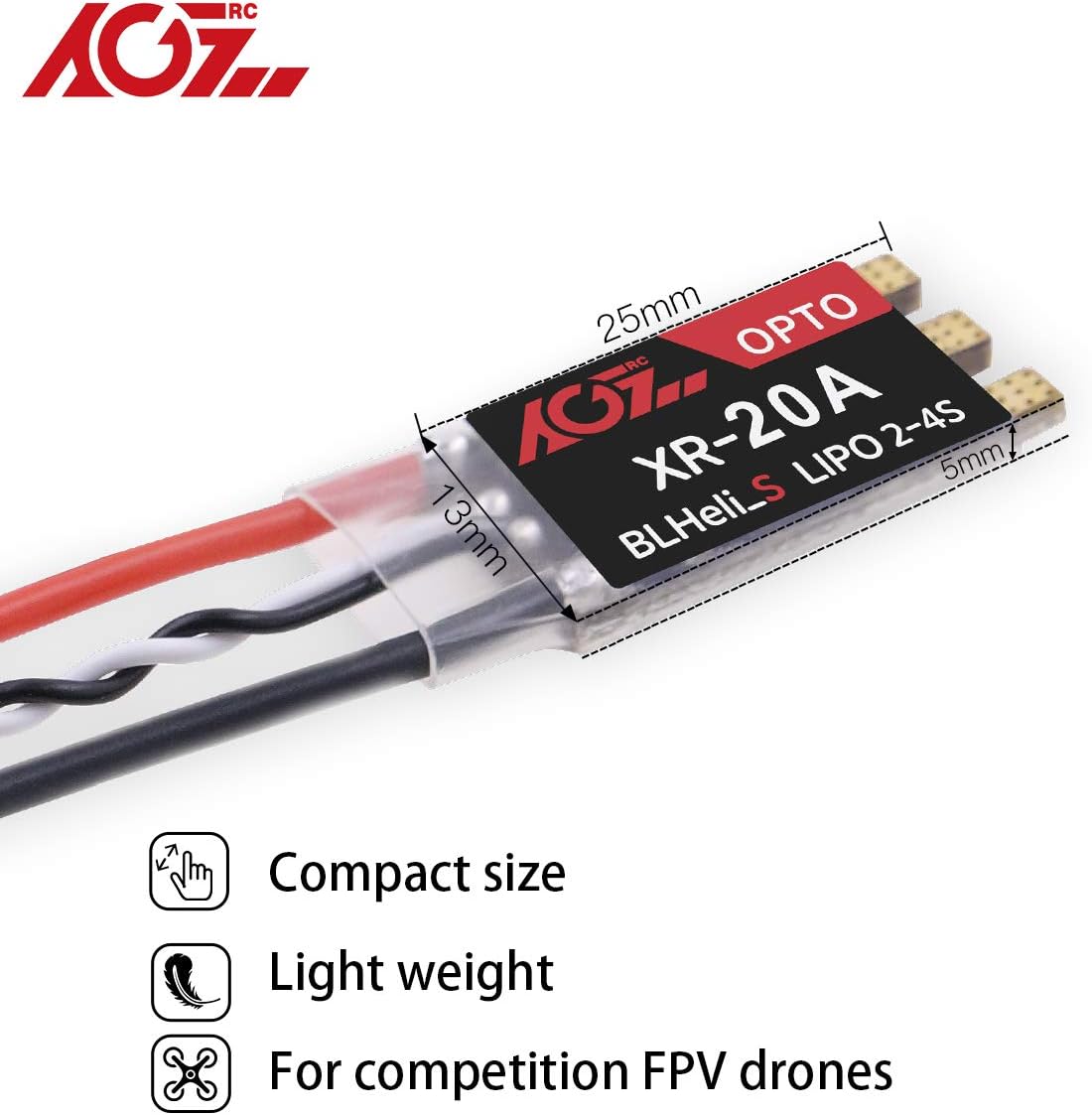

3)Compact size and light weight, especially designed for competition FPV drones.Suitable for Multirotor, fast throttle response.
4)High quality component, super fast running speed.

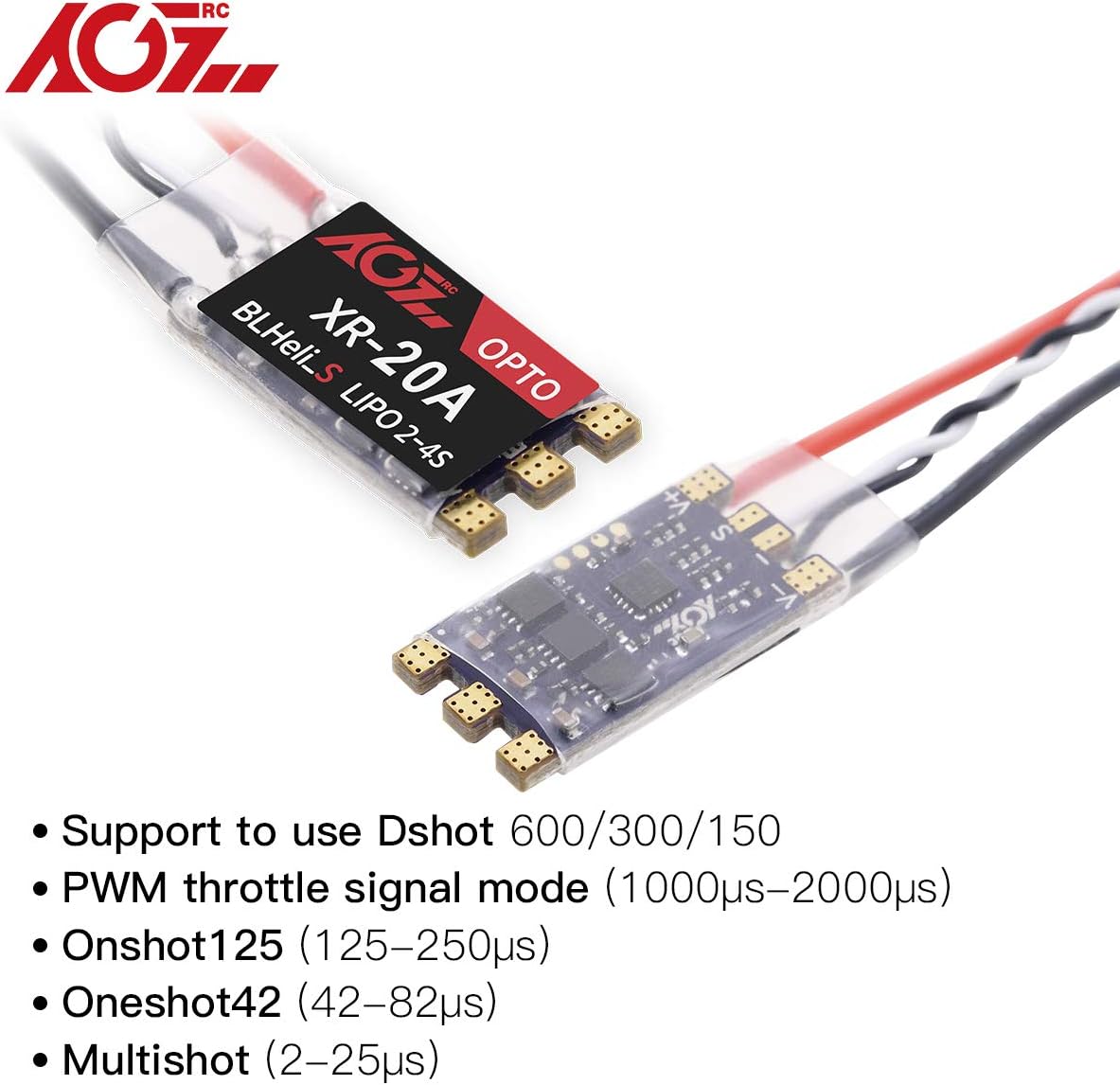

5)Support to use Dshot600/300/150, PWM throttle signal mode (1000μs-2000μs), Onshot125 (125-250μs), Oneshot42 (42-82μs) and Multishot (2-25μs).

Description：

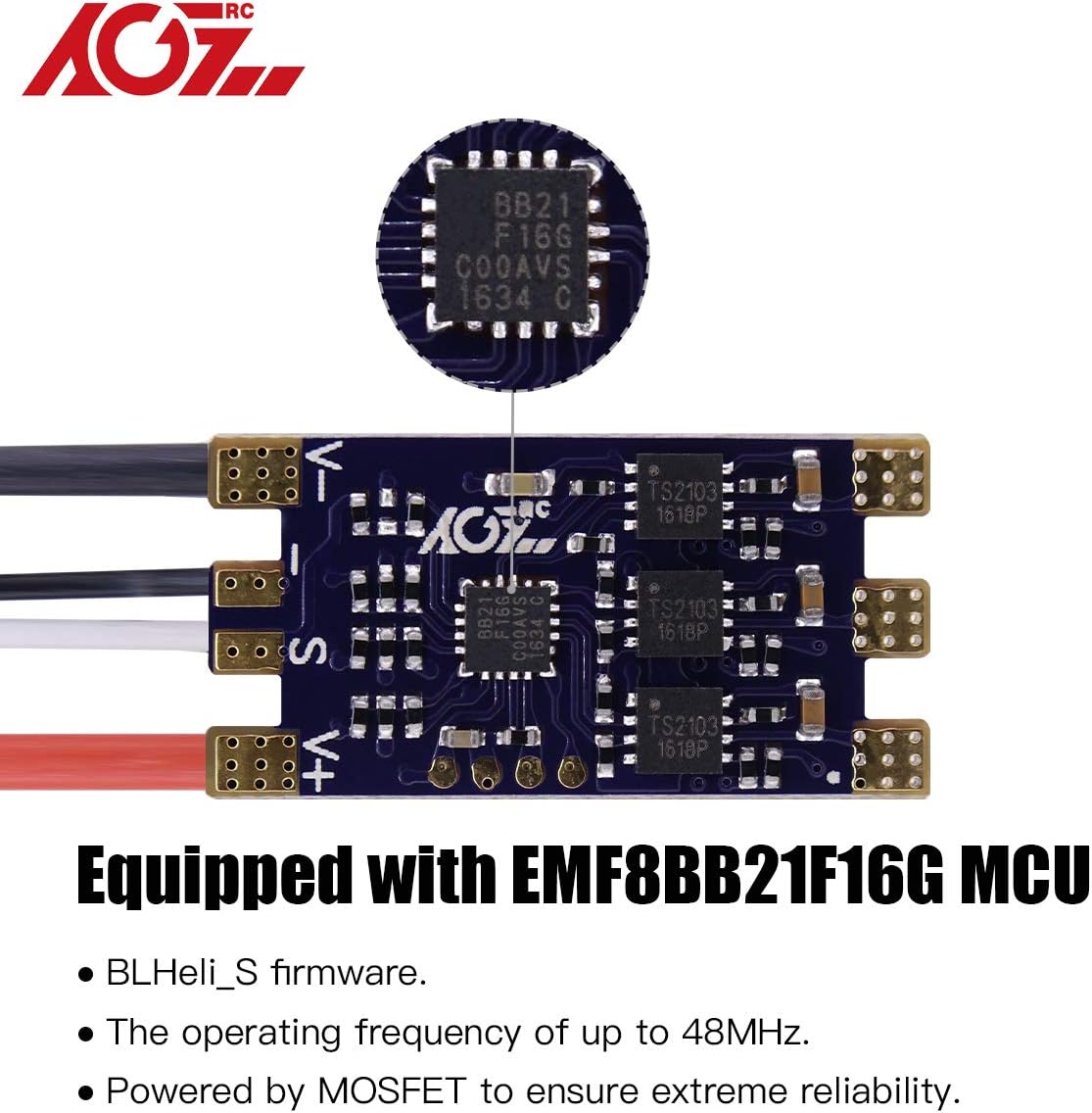

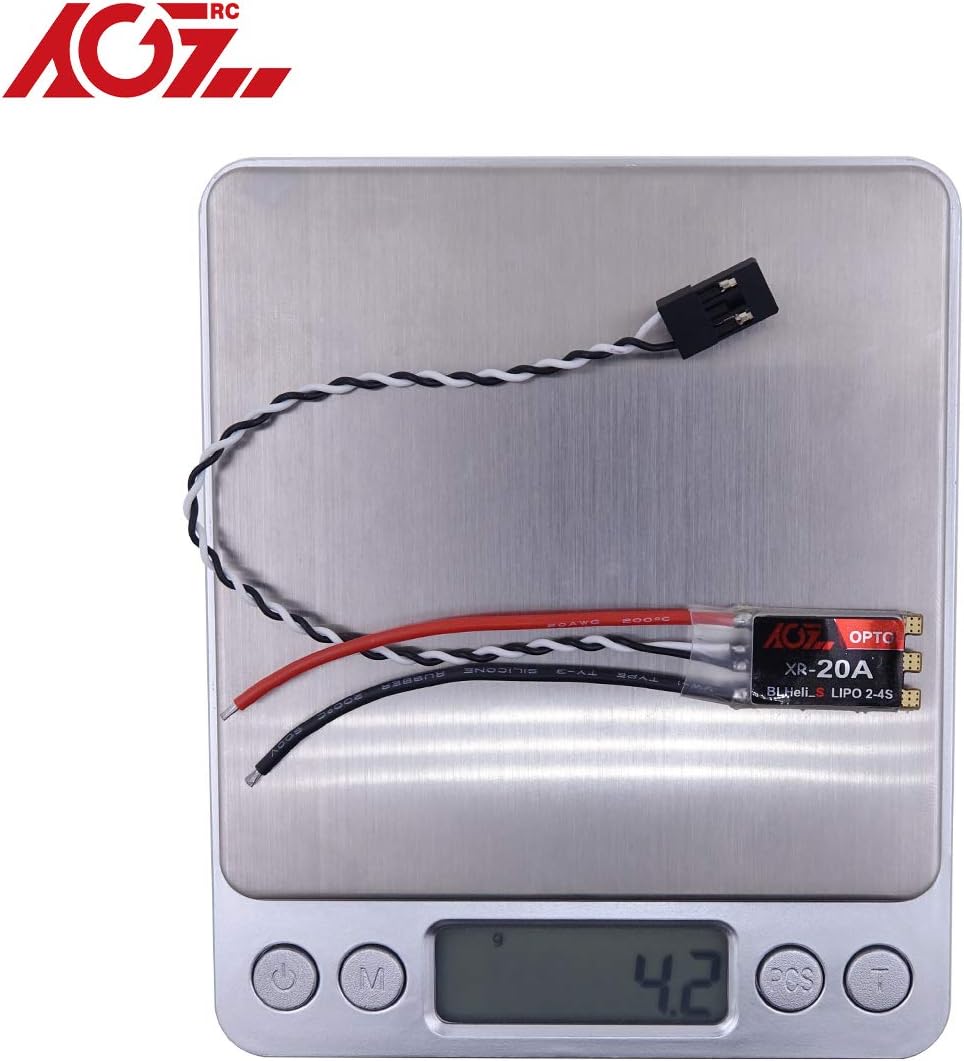

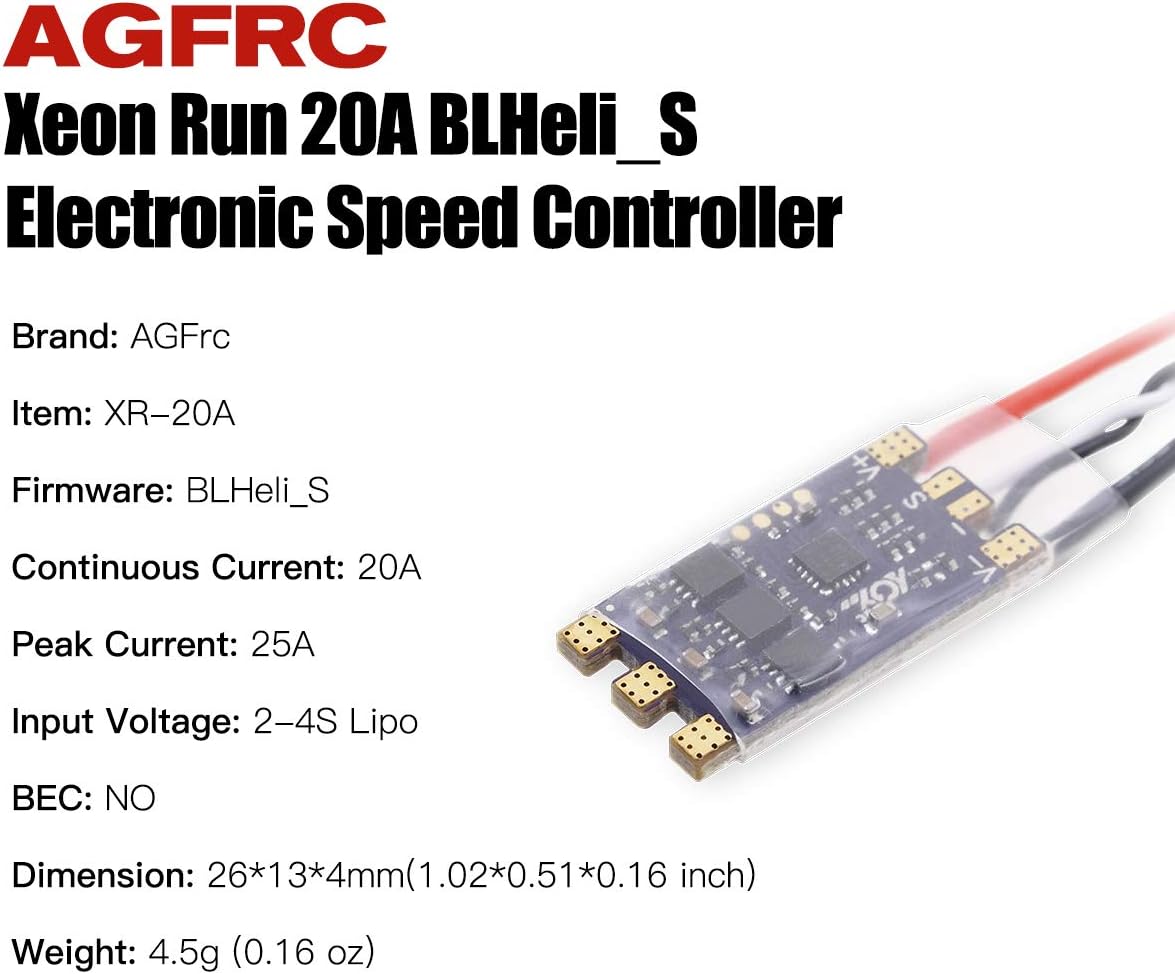

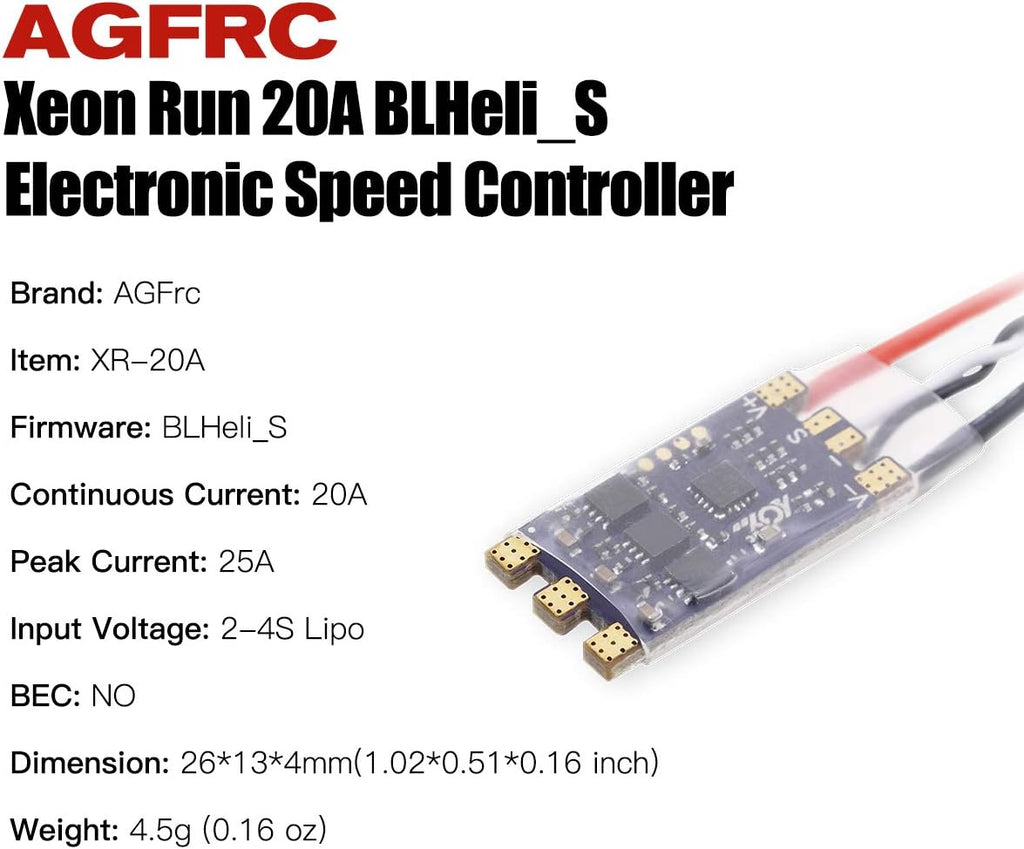

XR-20A BLheli-S Dshot Speed Controller 2-4s FPV ESC for QAV Racing Drone Item Name: XR-20A Constant Current: 20A Peak Current: 25A Input Voltage: 2-4s lipo Weight: 4.5g Feature 1) Comes with BLHeli_S firmware, easy to upgrade or flash via the esc signal cable. If use with CleanFlight or BetaFlight flight controller, connect the flight controller to BLHeliSuite software directly to set 4pcs ESC simultaneously. 2) Support to use Dshot600/300/150, PWM throttle signal mode (1000μs-2000μs), Onshot125 (125-250μs), Oneshot42 (42-82μs) and Multishot (2-25μs). 3) Hardware PWM drive motor, low voice, smooth throttle response. Damped light enabled to make it more sensitive and effective while reduce the motor speed. 4) Compact size and light weight, especially designed for competition FPV drones. 5) High quality component, super fast running speed. EMF8BB21F16G MCU (the operating frequency of up to 48MHz), 3-in-1 drive IC, import ceramic capacitor, 3 ounce copper and 4 layers PCB to increase efficiency and enjoy the real-time flight. 6) Suitable for Multirotor, fast throttle response. Easy and simple to operate with default settings. Twisted-pair for throttle signal cable to reduce signal interference and make it fly more stable. Compatible with various flight control systems. Miniature MOSFET with extra-low resistance and optimized driver brings amazing current shock withstanding capacity.
