The product has overheat and misoperation protection functions, stable performance, and long service life.
The continuous current of this product is 30A, and the instantaneous current is 35A. The voltage range is 6-12V, and the minimum starting voltage is 6V. Compatible with 930KV, 1000KV, 1400KV motor
Protection function: Automatically select 2-3LIPO, with protection voltages of 6V/9V respectively; Automatically select NIMH, with a protection voltage of 0.8V per section; safe start, prohibited from starting if the throttle position is incorrect; Temperature protection, shutdown at a surface temperature of 110 degrees Celsius; Out of control protection, stop the machine after 1 second of no signal.
This speed regulation adopts a microcontroller system, which can achieve simple system programming and is suitable for high-speed and high-power brushless motors.
Servo Tester Output: ≤15mA (5.0), Input: DC 4.2-6.0V. Output signal: 1.5ms ± 0.5ms.

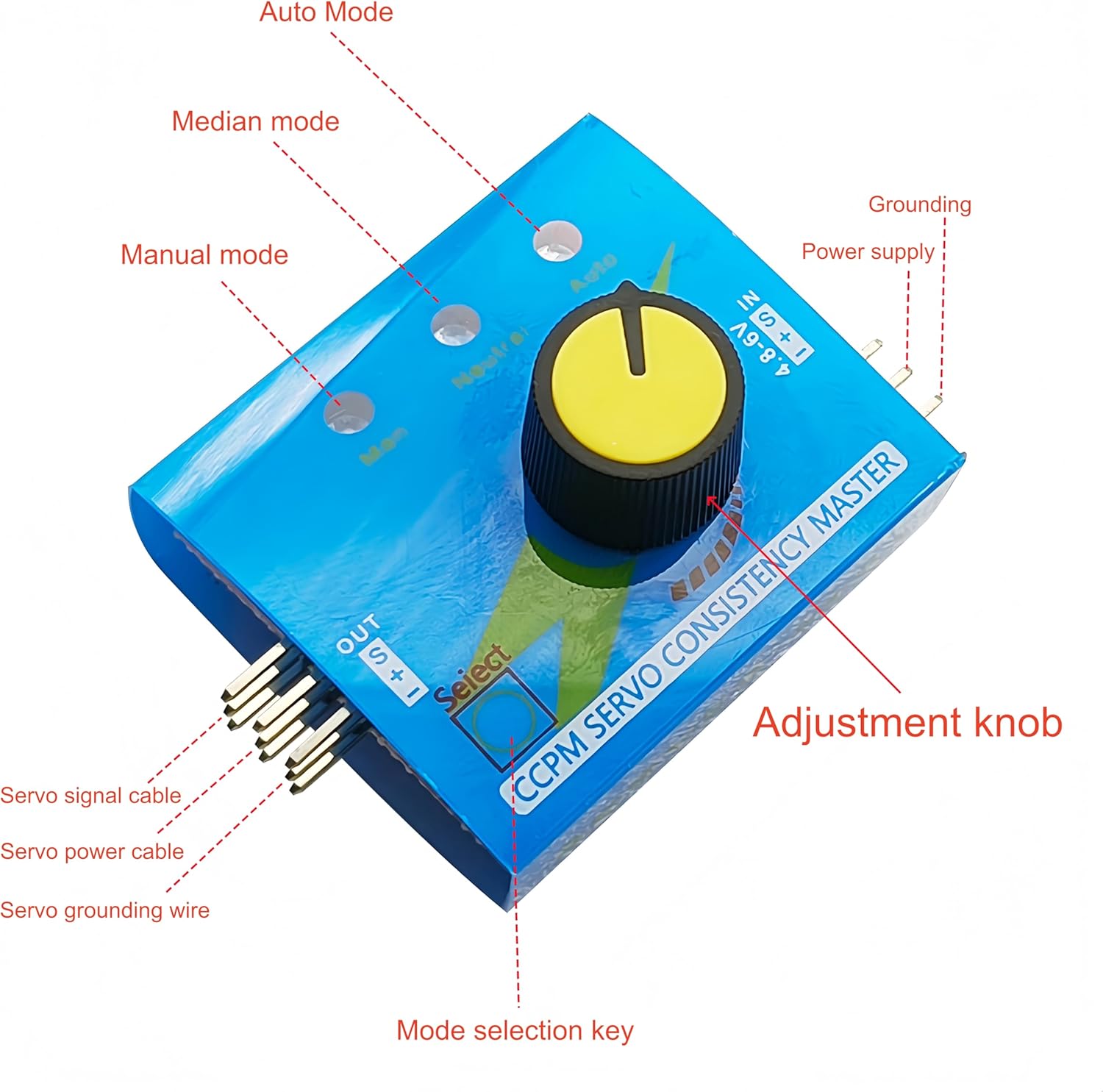

There are 3 modes to check servos or ESC: ①Manual mode: turn the knob with different speed, check the reaction time. ②Neutral mode: make the servo go back to the neutral point. ③Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.

Description：

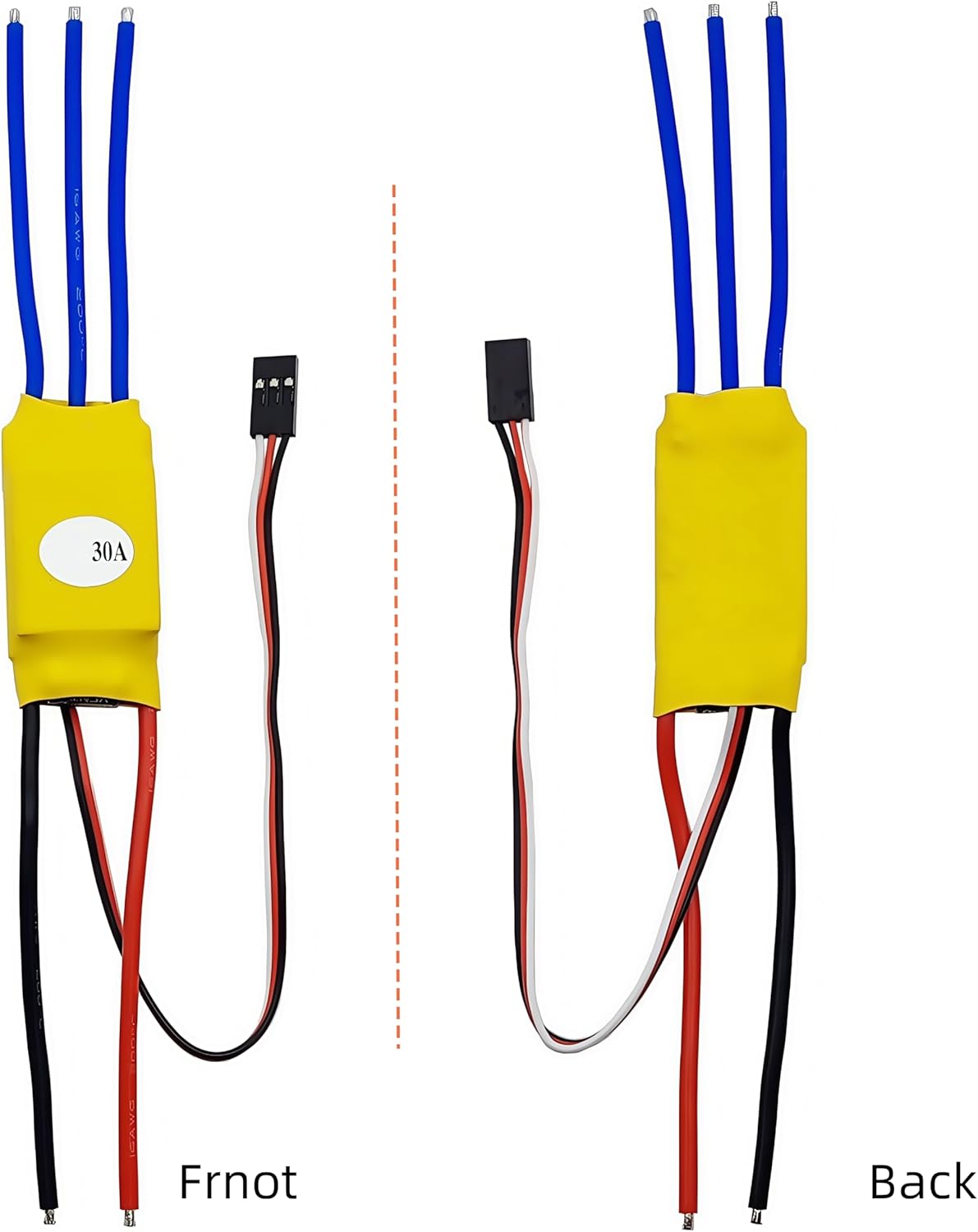

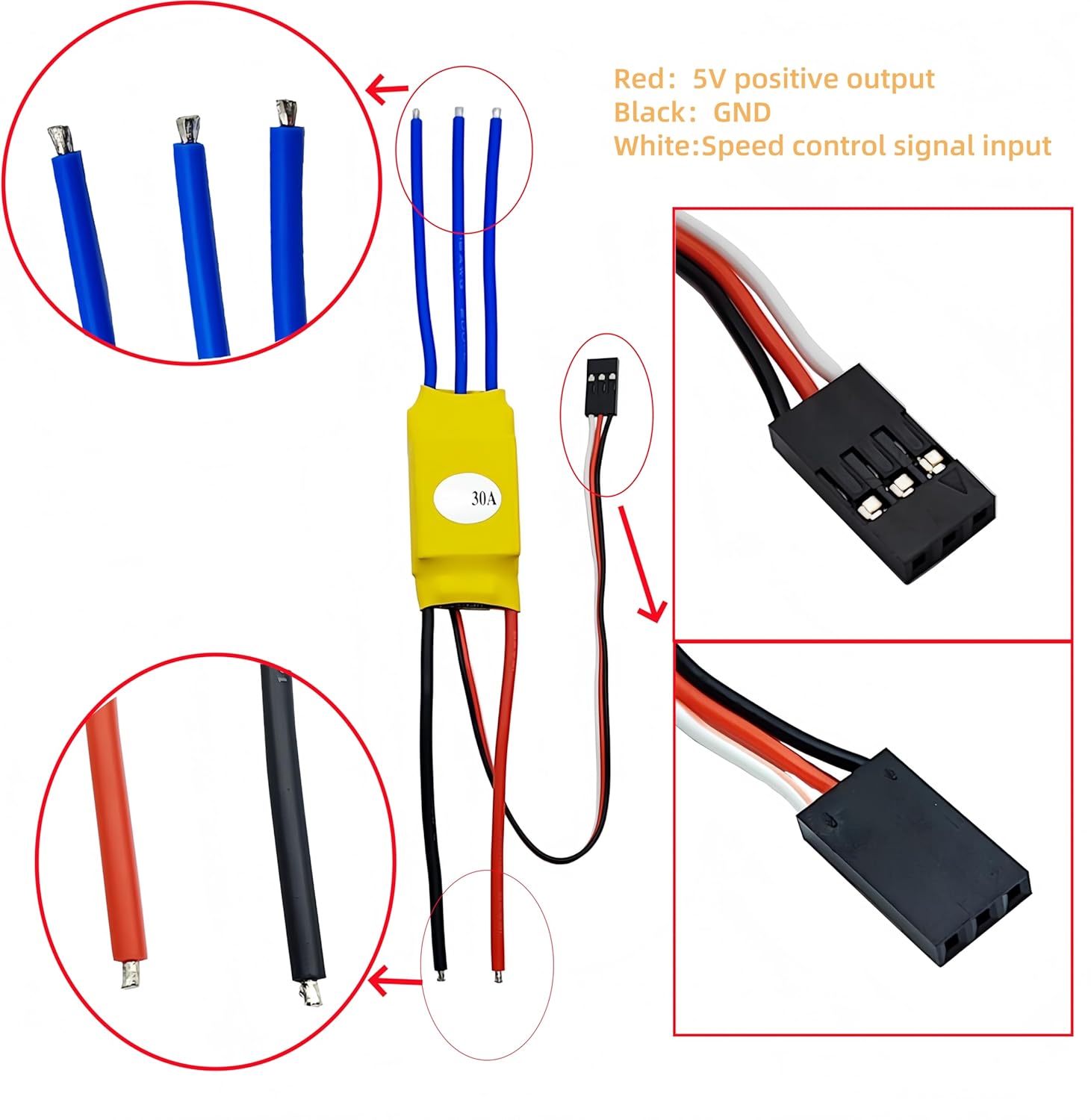

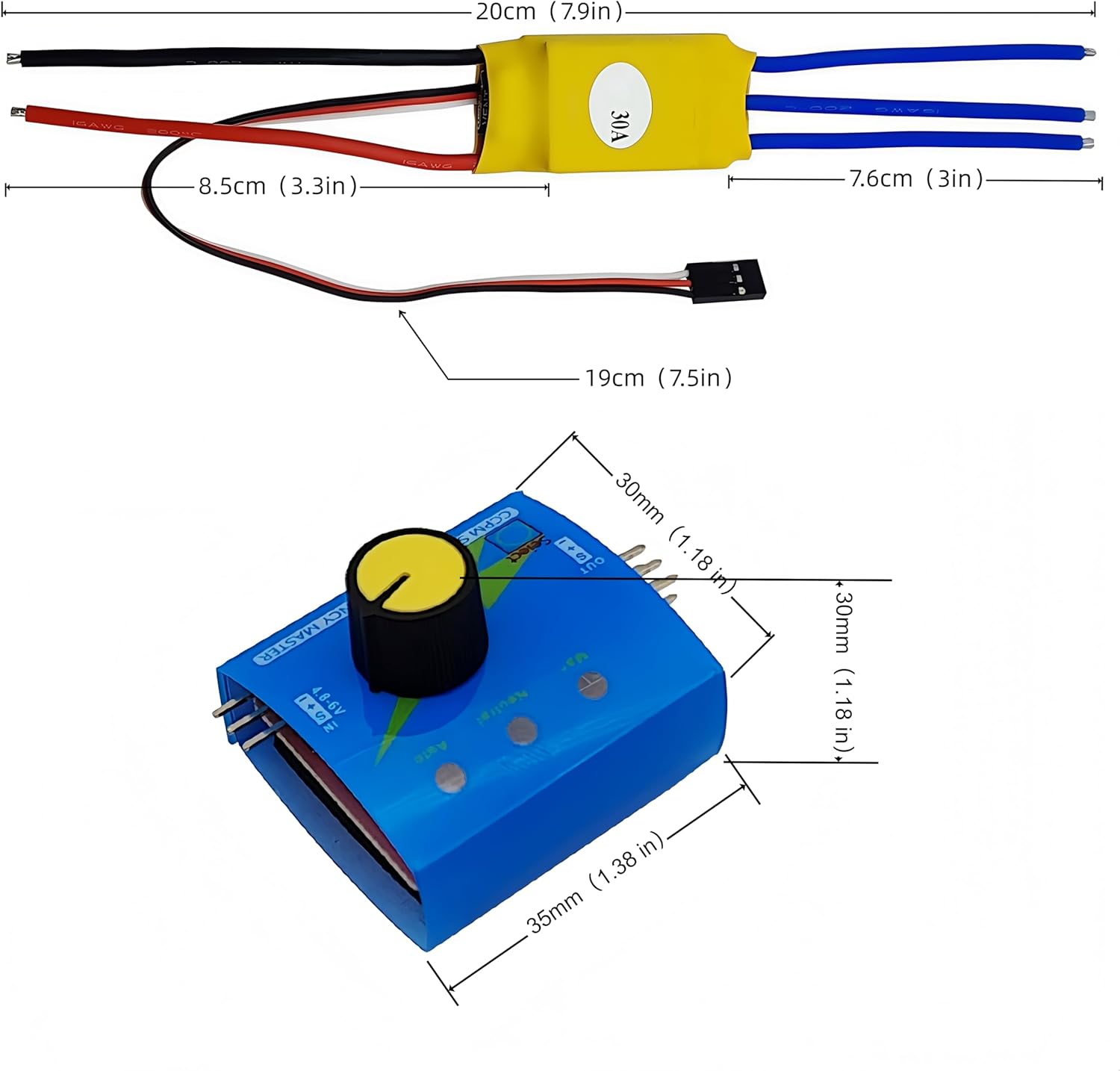

1. Parameters: Current: continuous 30A, instantaneous 35A Voltage range: 6V-12V Minimum starting voltage: 6V BEC type: linear BEC output: 2A PCB Size: 43*26*7mm Weight: 25g Color: yellow Black wire length: 85mm Red wire length: 85mm White wire length: 190mm Blue wire length: 76mm Wiring method Black - negative Red - positive JR terminal White - signal 3 X Blue - connect the motor 2. Protective Function: Automatically select 2 -3LIPO, the protection voltage is 6V and 9V Automatic select NIMH, the protection voltage of each section is 0.8V Safe start, if the accelerator position is not correct, it is forbidden to start Temperature protection, stop when 110 degree appearance temperature Out of control protection, stop after 1 second without signal. 3. Performance Description: Upper Speed Limit: Up to 300,000rpm for 2 pole internal rotation, 50,000rpm for 12 pole external rotation, and 42,000rpm for 14 pole external rotation. 8KHz PWM control, use speed control curve. Auto throttle adaptation, suitable for more remote control devices. Using BEC, MCU separates the power supply, the work is more stable. 4. Setting Method: (1). Turn on the transmitter and push the throttle (for FUTABA series transmitters need to select REV for the throttle channel). (2). Connect the receiver and motor. (3). Turn on the power supply of the ESC, and if the transmitter is normal, it will have the following sound: (If the sound ends with a long "di" sound and there is no more sound, then check the reverse setting of the throttle channel of the transmitter.) B B means LIPO automatic protection BB BB means NIMH NICD automatic protection BBB BBB means brake selection There are settings you need during the sound cycle. When you hear the syllable of the prompt sound, quickly pull the accelerator to the position. At the same time, the motor will make a very sharp sound to confirm. Servo Tester Description: Type: CCPM Servo Tester, ESC or Servo tester Output: ≤15mA (5.0) Input: DC 4.2-6.0V Output signal: 1.5ms ± 0.5ms Size: 35*30*30mm Weight: 8g Adjustment modes: manual, automatic, and the median. Features: 1. Can be easily detected and set the dummy bit server, jitter and median. Rotate the knob to detect the servo. 2. Can be connected to two servos or ESC; MCU control, good stability, high accuracy. Turn the knob, steering can be detected. 3. If you connect the electronic governor (brush or brushless available), you can get rid of the remote control device for manual control, for testing tone Speed or motor performance is very practical, no longer cumbersome connecting the remote control and the receiver. 4. It is equivalent to a "hand Dynamic Receiver "feature, playing rudder knob analog transmitters.
